Pressure Pipes - Swan Plastics

SANS 966-1

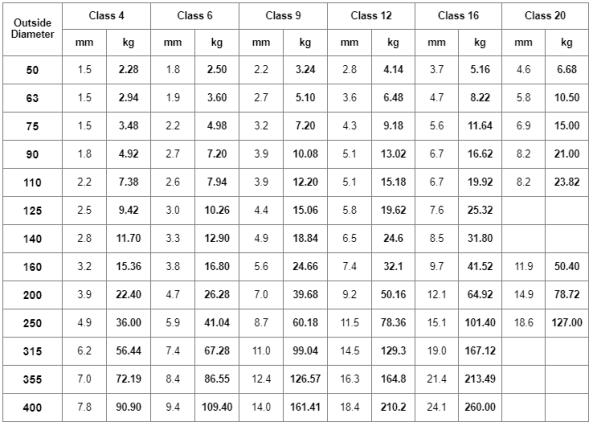

Unplasticed Polyvinyl Chloride (PVC-U) Pressure Pipe systems SANS 966 Part 1- 2014 (PVC-U) • Heavy - Metal Free • Organic Dimensions Minimum wall thickness and mass per 6-metre length for each size and class (Wall thickness = mm / Mass = kg)

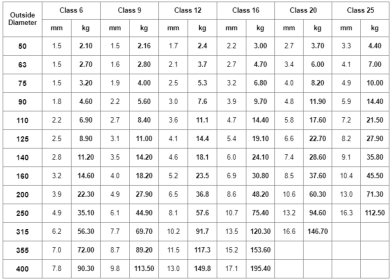

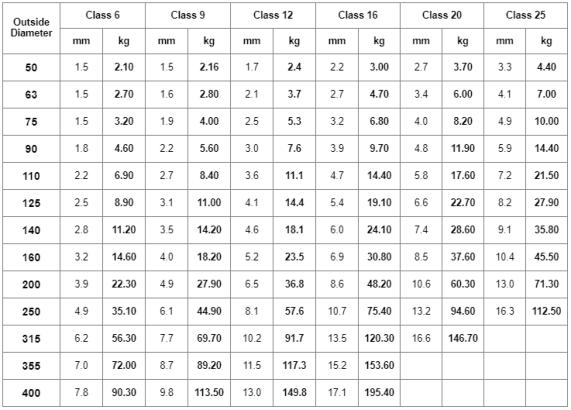

Modified Polyvinyl Chloride (PVC-M) Pressure Pipe systems SANS 966 Part 2 -2013 (PVC-M) • Heavy - Metal Free • Organic Dimensions Minimum wall thickness and mass per 6-metre length for each size and class (Wall thickness = mm / Mass = kg)

SANS 966-2

TO DOWNLOAD OUR PRESSURE PIPE BROCHURE CLICK HERE

Head Office

Address: 49 Jeffels Road, Prospecton, 4110.

Email:

info@swanplastics.co.za

Privacy Policy

Outside Diameter	Class 4		Class 6		Class 9		Class 12		Class 16		Class 20
Outside Diameter	mm	kg	mm	kg	mm	kg	mm	kg	mm	kg	mm	kg
50	1.5	2.28	1.8	2.50	2.2	3.24	2.8	4.14	3.7	5.16	4.6	6.68
63	1.5	2.94	1.9	3.60	2.7	5.10	3.6	6.48	4.7	8.22	5.8	10.50
75	1.5	3.48	2.2	4.98	3.2	7.20	4.3	9.18	5.6	11.64	6.9	15.00
90	1.8	4.92	2.7	7.20	3.9	10.08	5.1	13.02	6.7	16.62	8.2	21.00
110	2.2	7.38	2.6	7.94	3.9	12.20	5.1	15.18	6.7	19.92	8.2	23.82
125	2.5	9.42	3.0	10.26	4.4	15.06	5.8	19.62	7.6	25.32
140	2.8	11.70	3.3	12.90	4.9	18.84	6.5	24.6	8.5	31.80
160	3.2	15.36	3.8	16.80	5.6	24.66	7.4	32.1	9.7	41.52	11.9	50.40
200	3.9	22.40	4.7	26.28	7.0	39.68	9.2	50.16	12.1	64.92	14.9	78.72
250	4.9	36.00	5.9	41.04	8.7	60.18	11.5	78.36	15.1	101.40	18.6	127.00
315	6.2	56.44	7.4	67.28	11.0	99.04	14.5	129.3	19.0	167.12
355	7.0	72.19	8.4	86.55	12.4	126.57	16.3	164.8	21.4	213.49
400	7.8	90.90	9.4	109.40	14.0	161.41	18.4	210.2	24.1	260.00

Outside Diameter	Class 6		Class 9		Class 12		Class 16		Class 20		Class 25
Outside Diameter	mm	kg	mm	kg	mm	kg	mm	kg	mm	kg	mm	kg
50	1.5	2.10	1.5	2.16	1.7	2.4	2.2	3.00	2.7	3.70	3.3	4.40
63	1.5	2.70	1.6	2.80	2.1	3.7	2.7	4.70	3.4	6.00	4.1	7.00
75	1.5	3.20	1.9	4.00	2.5	5.3	3.2	6.80	4.0	8.20	4.9	10.00
90	1.8	4.60	2.2	5.60	3.0	7.6	3.9	9.70	4.8	11.90	5.9	14.40
110	2.2	6.90	2.7	8.40	3.6	11.1	4.7	14.40	5.8	17.60	7.2	21.50
125	2.5	8.90	3.1	11.00	4.1	14.4	5.4	19.10	6.6	22.70	8.2	27.90
140	2.8	11.20	3.5	14.20	4.6	18.1	6.0	24.10	7.4	28.60	9.1	35.80
160	3.2	14.60	4.0	18.20	5.2	23.5	6.9	30.80	8.5	37.60	10.4	45.50
200	3.9	22.30	4.9	27.90	6.5	36.8	8.6	48.20	10.6	60.30	13.0	71.30
250	4.9	35.10	6.1	44.90	8.1	57.6	10.7	75.40	13.2	94.60	16.3	112.50
315	6.2	56.30	7.7	69.70	10.2	91.7	13.5	120.30	16.6	146.70
355	7.0	72.00	8.7	89.20	11.5	117.3	15.2	153.60
400	7.8	90.30	9.8	113.50	13.0	149.8	17.1	195.40
