SANS 1601
Unplasticised Poly Vinyl Chloride (PVC-U) for under
ground Drainage and Sewerage Systems
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating. Kpa
stiffness refers to the pipe stiffness (Crush
Strength)
SANS 791
Unplasticised Poly Vinyl Chloride (PVC-U) Sewer
and Drain Pipe
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating. Kpa
stiffness refers to the pipe stiffness (Crush
Strength)
TO DOWNLOAD OUR SUPER-SWAN/ PLUMBEASY
BROCHURE CLICK HERE
TO DOWNLOAD OUR MULLCON-S BROCHURE
CLICK HERE
Head Office
Address: 49 Jeffels Road, Prospecton, 4110.
Email:
SUPER-SWAN/ PLUMBEASY STRUCTURED WALL PIPE (SANS 1601:2010)
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| PU110/6 | 110mm | 6m | Plain end | 5.00 | 100kpa |
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SM/6 | 110mm | 6m | Plain end | 6.20 | 200kpa |

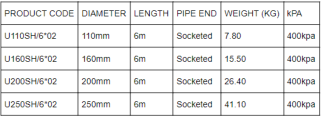

| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SH/6*02 | 110mm | 6m | Socketed | 7.80 | 400kpa |
| U160SH/6*02 | 160mm | 6m | Socketed | 15.50 | 400kpa |
| U200SH/6*02 | 200mm | 6m | Socketed | 26.40 | 400kpa |
| U250SH/6*02 | 250mm | 6m | Socketed | 41.10 | 400kpa |
MULLCON-S SOLID WALL SEWER PIPE (SANS 791:2010)
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SS/6*02 | 110mm | 6m | Socketed | 5.00 | 100kpa |
| U160SS/6 | 160mm | 6m | Plain end | 11.50 | 100kpa |
| U160SS/6*02 | 160mm | 6m | Socketed | 11.50 | 100kpa |
SANS 1601
Unplasticised Poly Vinyl Chloride (PVC-U)
for under ground Drainage and Sewerage
Systems
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating.
Kpa stiffness refers to the pipe stiffness
(Crush Strength)
SANS 791
Unplasticised Poly Vinyl Chloride (PVC-U)
Sewer and Drain Pipe
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating.
Kpa stiffness refers to the pipe stiffness
(Crush Strength)
TO DOWNLOAD OUR SUPER-SWAN/ PLUMBEASY BROCHURE CLICK HERE
TO DOWNLOAD OUR MULLCON-S BROCHURE CLICK HERE
Head Office
Tel:
031 912 1607Address:
49 Jeffels Road, Prospecton, 4110.Email:
info@swanplastics.co.zaQuick Links
Contact Us

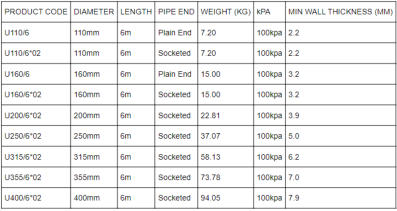

| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA | MIN WALL THICKNESS (MM) |
|---|---|---|---|---|---|---|
| U110/6 | 110mm | 6m | Plain End | 7.20 | 100kpa | 2.2 |
| U110/6*02 | 110mm | 6m | Socketed | 7.20 | 100kpa | 2.2 |
| U160/6 | 160mm | 6m | Plain End | 15.00 | 100kpa | 3.2 |
| U160/6*02 | 160mm | 6m | Socketed | 15.00 | 100kpa | 3.2 |
| U200/6*02 | 200mm | 6m | Socketed | 22.81 | 100kpa | 3.9 |
| U250/6*02 | 250mm | 6m | Socketed | 37.07 | 100kpa | 5.0 |
| U315/6*02 | 315mm | 6m | Socketed | 58.13 | 100kpa | 6.2 |
| U355/6*02 | 355mm | 6m | Socketed | 73.78 | 100kpa | 7.0 |
| U400/6*02 | 400mm | 6m | Socketed | 94.05 | 100kpa | 7.9 |

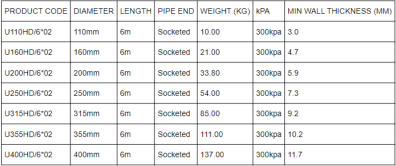

| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA | MIN WALL THICKNESS (MM) |
|---|---|---|---|---|---|---|
| U110HD/6*02 | 110mm | 6m | Socketed | 10.00 | 300kpa | 3.0 |
| U160HD/6*02 | 160mm | 6m | Socketed | 21.00 | 300kpa | 4.7 |
| U200HD/6*02 | 200mm | 6m | Socketed | 33.80 | 300kpa | 5.9 |
| U250HD/6*02 | 250mm | 6m | Socketed | 54.00 | 300kpa | 7.3 |
| U315HD/6*02 | 315mm | 6m | Socketed | 85.00 | 300kpa | 9.2 |
| U355HD/6*02 | 355mm | 6m | Socketed | 111.00 | 300kpa | 10.2 |
| U400HD/6*02 | 400mm | 6m | Socketed | 137.00 | 300kpa | 11.7 |
+27 31 912 1607 | swanplastics@dbnmail.co.za
SUPER-SWAN/ PLUMBEASY STRUCTURED WALL PIPE (SANS 1601:2010)
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| PU110/6 | 110mm | 6m | Plain end | 5.00 | 100kpa |
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SM/6 | 110mm | 6m | Plain end | 6.20 | 200kpa |
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SH/6*02 | 110mm | 6m | Socketed | 7.80 | 400kpa |
| U160SH/6*02 | 160mm | 6m | Socketed | 15.50 | 400kpa |
| U200SH/6*02 | 200mm | 6m | Socketed | 26.40 | 400kpa |
| U250SH/6*02 | 250mm | 6m | Socketed | 41.10 | 400kpa |
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA | MIN WALL THICKNESS (MM) |
|---|---|---|---|---|---|---|
| U110/6 | 110mm | 6m | Plain End | 7.20 | 100kpa | 2.2 |
| U110/6*02 | 110mm | 6m | Socketed | 7.20 | 100kpa | 2.2 |
| U160/6 | 160mm | 6m | Plain End | 15.00 | 100kpa | 3.2 |
| U160/6*02 | 160mm | 6m | Socketed | 15.00 | 100kpa | 3.2 |
| U200/6*02 | 200mm | 6m | Socketed | 22.81 | 100kpa | 3.9 |
| U250/6*02 | 250mm | 6m | Socketed | 37.07 | 100kpa | 5.0 |
| U315/6*02 | 315mm | 6m | Socketed | 58.13 | 100kpa | 6.2 |
| U355/6*02 | 355mm | 6m | Socketed | 73.78 | 100kpa | 7.0 |
| U400/6*02 | 400mm | 6m | Socketed | 94.05 | 100kpa | 7.9 |
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA | MIN WALL THICKNESS (MM) |
|---|---|---|---|---|---|---|
| U110HD/6*02 | 110mm | 6m | Socketed | 10.00 | 300kpa | 3.0 |
| U160HD/6*02 | 160mm | 6m | Socketed | 21.00 | 300kpa | 4.7 |
| U200HD/6*02 | 200mm | 6m | Socketed | 33.80 | 300kpa | 5.9 |
| U250HD/6*02 | 250mm | 6m | Socketed | 54.00 | 300kpa | 7.3 |
| U315HD/6*02 | 315mm | 6m | Socketed | 85.00 | 300kpa | 9.2 |
| U355HD/6*02 | 355mm | 6m | Socketed | 111.00 | 300kpa | 10.2 |
| U400HD/6*02 | 400mm | 6m | Socketed | 137.00 | 300kpa | 11.7 |
MULLCON-S SOLID WALL SEWER PIPE (SANS 791:2010)
| PRODUCT CODE | DIAMETER | LENGTH | PIPE END | WEIGHT (KG) | kPA |
|---|---|---|---|---|---|
| U110SS/6*02 | 110mm | 6m | Socketed | 5.00 | 100kpa |
| U160SS/6 | 160mm | 6m | Plain end | 11.50 | 100kpa |
| U160SS/6*02 | 160mm | 6m | Socketed | 11.50 | 100kpa |
SANS 1601
SANS 791
Unplasticised Poly Vinyl Chloride (PVC-U)
for under ground Drainage and Sewerage
Systems
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating. Kpa
stiffness refers to the pipe stiffness (Crush
Strength)
Unplasticised Poly Vinyl Chloride (PVC-U)
Sewer and Drain Pipe
Heavy Metal Free - Organic
Dimensions
(Kpa) Stiffness is not a pressure rating. Kpa
stiffness refers to the pipe stiffness (Crush
Strength)
TO DOWNLOAD OUR SUPER-SWAN/ PLUMBEASY BROCHURE CLICK HERE
TO DOWNLOAD OUR MULLCON-S BROCHURE CLICK HERE
Head Office
Tel:
031 912 1607Address:
49 Jeffels Road, Prospecton, 4110.Email:
